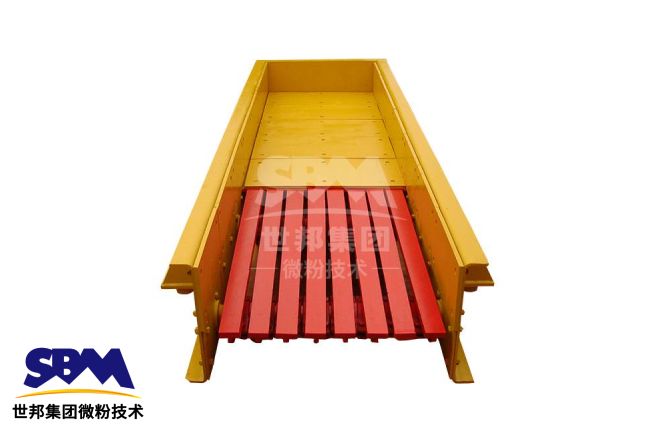

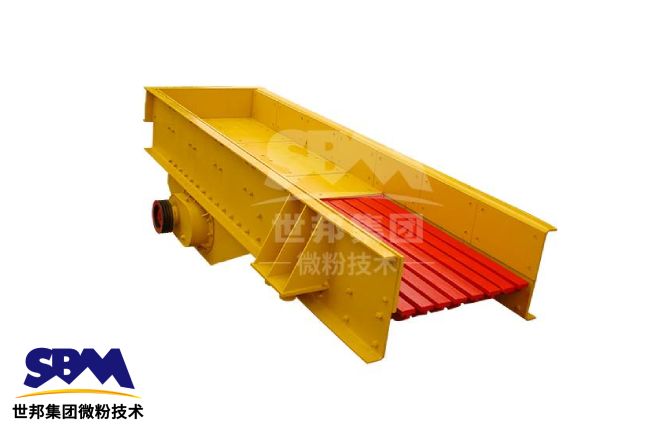

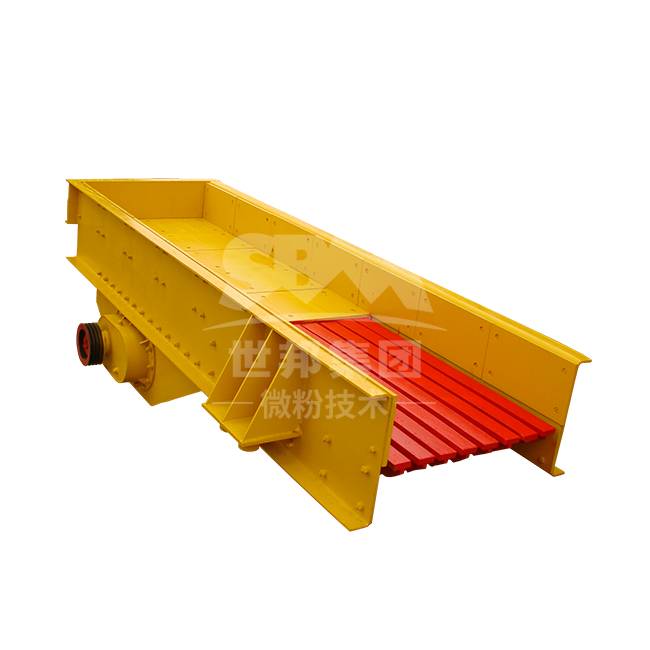

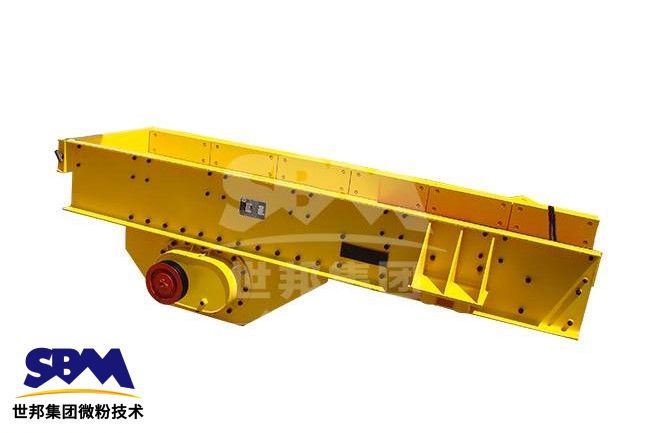

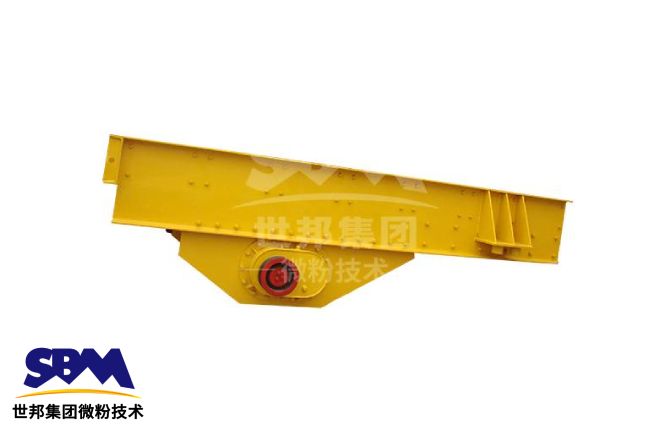

GZ Vibrating Feeder

Capacity: 5-100t/h

Max feeding size: 50-150mm

Processing ability: 5-100t/h

Product features:

BRIEF INTRODUCTION OF GZ Vibrating Feeder:

GZ vibrating feeder is a kind of linear-direction feeding equipment. It features smooth vibrating, reliable operation, long service life, and being suitable for feeding. They are widely used in the mining, building-material, silicate, and chemical industry in the crushing and screening plants.

In the Sand-Stone production line, it can send materials to the crusher evenly and continuously and at the same time, it can screen materials roughly. It can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.

GZ vibrating feeder consists of a vibrating frame, spring, vibrator, motor vibrating device, and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged.

When installation, the two gears must be jogged according to the sign. Through the drive of the motor, the two eccentric shafts start rotating to produce a linear huge power that forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoid further crushing, so screening purpose can be reached.

Benefits of GZ Vibrating Feeder:

GZ Vibrating Feeder

1. Stable and long-span life.

2. Easy to adjust.

3. Reliable operation.

4. Easy maintenance.

5. No pollution.

Specifications of GZ Vibrating Feeder:

Model

GZ1

GZ2

GZ3

GZ4

GZ5

Input capacity (t/h)

5

10

25

50

100

Max input size(mm)

50

60

70

100

150

Motor power (W)

60

150

200

450

650

Voltage(V)

220

Current(A)

≦1

≦2.8

≦3.8

≦7

≦10.6

Double-amplitude(mm)

1.75

Bottom clearance(mm)

1.9-2.2

Weight (kg)

73

155

225

460

656
