Bentonite, a clay mineral dominated by montmorillonite, plays an indispensable role in the global drilling industry. Whether in oil and gas exploration, geothermal wells, or water well drilling, bentonite is the backbone material of drilling mud formulations. Its swelling capacity, colloidal properties, and ability to control fluid loss make it the material of choice for stabilizing boreholes and ensuring smooth drilling operations.

However, raw bentonite in its natural form does not meet the strict performance requirements of drilling muds. The clay must be processed into fine powders, usually in the range of 200–2000 mesh, to unlock its full potential. This is where advanced grinding technology comes in. Among the most reliable solutions for this task is the HGM series ultrafine grinding mill, which has become the industry benchmark for bentonite processing.

Bentonite in Drilling Fluids: Why It Matters

Key Functions of Bentonite in Drilling

When bentonite is dispersed in water, it forms a viscous, thixotropic suspension with unique rheological properties. In drilling muds, bentonite serves several essential purposes:

1. Borehole Stability – It seals porous formations and prevents borehole collapse.
2. Cuttings Suspension – Keeps rock cuttings suspended during drilling and circulation.
3. Lubrication & Cooling – Reduces friction and dissipates heat at the drill bit.
4. Filtration Control – Forms a thin, low-permeability filter cake that minimizes fluid loss.
5. Pressure Control – Maintains hydrostatic pressure to balance formation fluids.

Industry Standards

For bentonite to qualify as drilling-grade, it must meet specifications set by the American Petroleum Institute (API). These include minimum yield point, gel strength, fluid loss characteristics, and viscosity requirements. Achieving these performance benchmarks requires bentonite to be finely ground, clean, and free of impurities.

Technical Requirements for Drilling-Grade Bentonite

Drilling mud properties depend on the particle size and surface area of bentonite powder. Some key requirements include:

• Particle Size Distribution – Typically 200–2000 mesh (74 μm down to 5 μm).
• Swelling Index – At least 24 mL/2 g according to API standards.
• Viscosity – Adequate to suspend drill cuttings without being too thick.
• Low Filtrate Loss – Controlled permeability for wellbore protection.

Natural bentonite often contains impurities like quartz, feldspar, or carbonates. Proper milling and classification ensure that only fine, activated bentonite particles are used, maximizing mud efficiency.

Why Fine Grinding Is Necessary

Bentonite’s effectiveness in drilling muds is directly linked to fineness:

• Enhanced Surface Area – Finer particles swell faster and provide better viscosity.
• Improved Suspension Ability – Reduces sedimentation in mud systems.
• Uniform Performance – Consistent particle size guarantees stable rheology.
• Activation – Increases cation exchange capacity, critical for mud yield.

Without ultrafine grinding, bentonite cannot fully hydrate or disperse, resulting in poor drilling fluid performance.

HGM Ultrafine Grinding Mill: The Ideal Choice

HGM ultrafine grinding mill is specifically designed to process non-metallic minerals like bentonite into ultrafine powders. With over two decades of R&D and practical application, the HGM series has proven its superiority in producing drilling-grade bentonite at large scale with high precision.

Key Features

1. Wide Fineness Range

• Adjustable between 200 mesh to 2500 mesh.
• Can produce D97 ≤ 5–45 μm powders to meet API requirements.

2. High Efficiency

• Capacity ranges from 1 to 45 tons/hour depending on model.
• Multi-ring, multi-roller design ensures maximum grinding efficiency.

3. Low Energy Consumption

• Consumes 30–50% less energy compared to ball mills or Raymond mills.

4. Stable Operation

• Advanced frequency control system for consistent fineness.
• Automatic lubrication and monitoring reduce downtime.

5. Environmental Protection

• Equipped with pulse dust collectors and noise reduction systems.
• Meets international environmental standards.

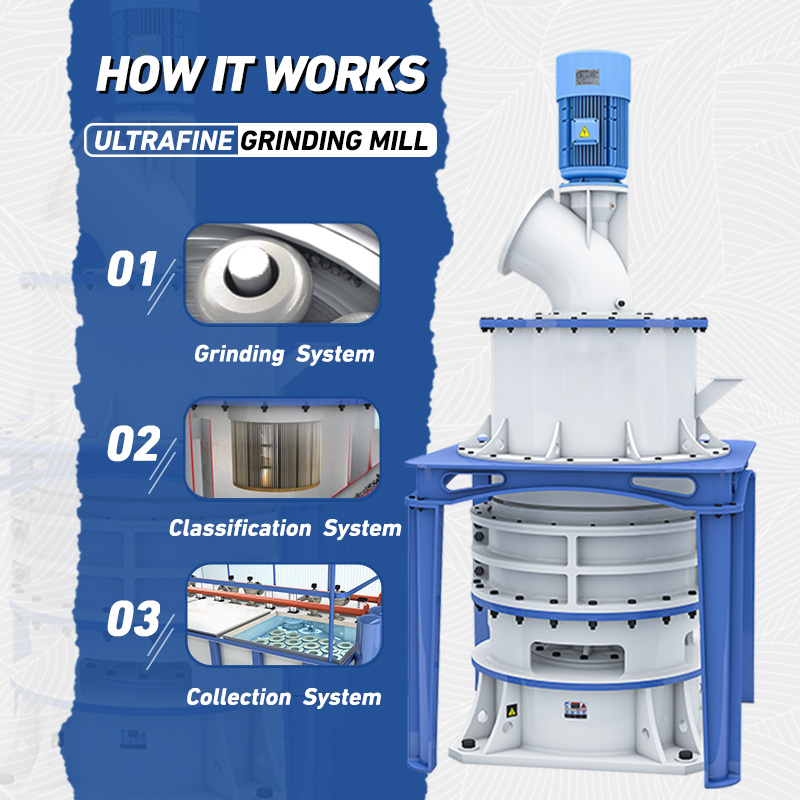

Working Principle of HGM Mill

• Feeding – Bentonite is crushed into <20 mm particles and fed into the mill.
• Grinding – Material is ground between rollers and the grinding ring under high pressure.
• Classification – Built-in turbine classifier separates qualified fine powder.
• Collection – Finished product is collected by pulse dust collectors.
• Packaging – Powder is stored and packed for delivery to drilling mud manufacturers.

This closed-loop system ensures zero dust leakage and consistent product quality.

Process Flow for Bentonite Drilling Powder Production

• Raw Material Preparation – Drying and crushing natural bentonite.
• Primary Grinding – Coarse reduction using jaw crusher or hammer mill.
• Ultrafine Grinding – Processing in HGM ultrafine mill to required mesh size.
• Classification & Collection – Ensuring API-compliant powder.
• Activation (optional) – Soda ash treatment to improve swelling capacity.
• Packaging – Final powder packed in bulk bags or 25 kg sacks for drilling use.

Benefits for Drilling Mud Manufacturers

• Higher Yield Bentonite – Produces powder that meets or exceeds API standards.
• Reduced Additive Dosage – Finer bentonite reduces overall mud consumption.
• Cost Savings – Lower energy costs and maintenance expenses.
• Consistent Quality – Stable production ensures reliable mud performance.
• Flexibility – Adjustable fineness allows production of bentonite for different drilling environments.
