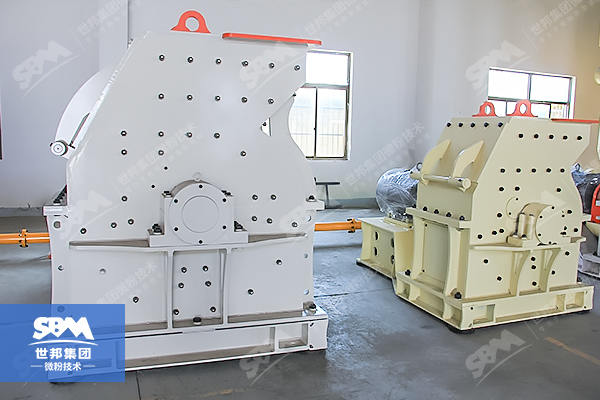

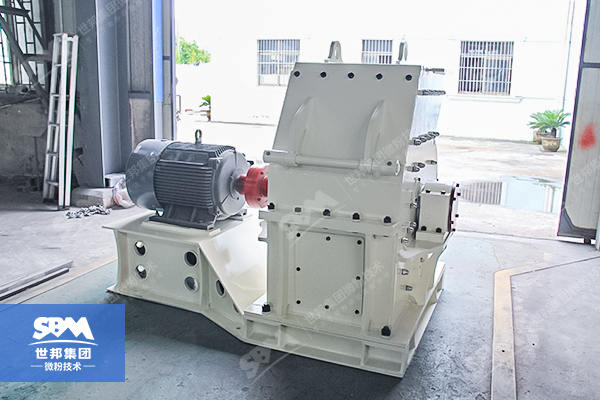

PC hammer crusher is a kind of industrial machinery, the principle is to crush the material by the collision of the high-speed rotating hammer body and the material.
It has the characteristics of a simple structure, a large crushing ratio, and high production efficiency. It can be crushed in dry and wet forms.
It is suitable for mining, cement, coal, metallurgy, building materials, highway, combustion, and other departments to finely crush medium-hard and brittle materials.
The hammer crusher is used to crush various medium-hard and weakly abrasive materials. The compressive strength of the material does not exceed 100MPa, and the moisture content is less than 15%. Such as coal, salt, chalk, gypsum, bricks, limestone, shale, etc.
It can also be used to crush wood, paper, or crushed asbestos cement with a strong fiber structure, elasticity, and toughness to recycle asbestos fibers.
In addition, the hammer crusher can not only be used in crushing production lines, sand production lines, but also in the beneficiation production line instead of cone crushers.
The working hammer is cast with a new technology, which is wear-resistant and impact-resistant.
The required granularity can be adjusted according to customer requirements.
The structure of the machine body is sealed, which solves the problems of dust pollution and ash leakage of the machine body in the crushing workshop.
The overall design has the advantages of beautiful appearance, compact structure, few wearing parts, and convenient maintenance. It is an upgraded product.

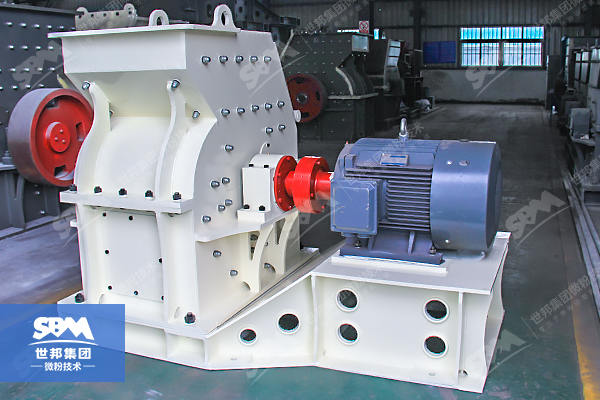

PC hammer crusher is mainly composed of frame, rotor, supporting iron, and grate.
The frame is divided into upper and lower parts, which are welded after cutting steel plates. The frame lining is made of high manganese steel, which can be replaced after wear.
The rotor is composed of the main shaft, a turntable, a pin, and a hammer, and the turntable, a pin, and a hammer are regularly combined in the main shaft. The motor drives the rotor to rotate rapidly in the crushing cavity, and the hammer spreads outward under the centrifugal force of the rotor rotation.
The bulk material entering the crusher through the feed port is hammered, impacted, cut, and ground into small sizes at high speed.
After crushing, the qualified materials are screened out from the gap of the grate, and the unqualified materials are left in the crushing cavity for further hammering and grinding until they reach the standard particle size.
The size of the final product can be adjusted by replacing the furnace bar. The gap between the rotor and the grate can also be adjusted according to different requirements.
| Model | PC400x300 | PC600x400 | PC800x600 |
| Rotor diameter /mm | 400 | 600 | 800 |
| Rotor length /mm | 300 | 400 | 600 |
| Rotor speed r/min | 1100 | 1000 | 900 |
| Max. feeding size /mm | <100 | <220 | <350 |
| Ouput size /mm | 5-10 | 5-15 | 5-20 |
| Capacity T/h | 5-13 | 10-20 | 18-30 |
| Motor power /KW | 11 | 18.5 | 45 |
| Number of hammer /piece | 16 | 20 | 28 |
| Weight /T | 0.8 | 1.8 | 2.8 |
| Overall dimension L*W*H/mm | 900*670*860 | 1200*1050*1200 | 2360*1490*1415 |
