Achieving 5 to 45 Microns: Precision Grinding for High-Grade Recovered Carbon Black Powder

The HGM Series Ultrafine Grinding Mill, integrated with advanced Variable Frequency Drive (VFD) Process Control, stands as the definitive solution, overcoming the inherent physico-mechanical challenges presented by ultra-light materials to meet exacting N-series grade specifications.

Material Science and the Challenge of Aerodynamic Resistance

Unlike dense, brittle minerals (e.g., limestone or dolomite) where comminution is dominated by compressive fracture mechanics, Recovered Carbon Black RCB presents a unique challenge rooted in its low bulk density (< 0.5 g/cm³) and fine primary particle morphology.

The primary difficulty, as observed in operational environments, is the particle’s susceptibility to aerodynamic lift and centrifugal displacement. When introduced into a high-speed roller or ring mill, the low mass of the RCB particle means that the inertial forces required to drive it into the grinding zone are easily overcome by drag forces and air currents generated by the mill’s rotational dynamics. This leads to the undesirable state of particles floating or bypassing the rollers, resulting in:

1. 1. Reduced Throughput Efficiency : Inconsistent material feed into the grinding gap.
2. 2. Wide Particle Size Distribution (PSD): Inability to maintain a narrow cut-point (d50) necessary for high-grade applications.
3. 3. Deagglomeration Requirement: The grinding process must not only reduce particle size but also apply sufficient shear force to deagglomerate pyrolysis char clumps, exposing the full surface area required for semi-reinforcement properties.

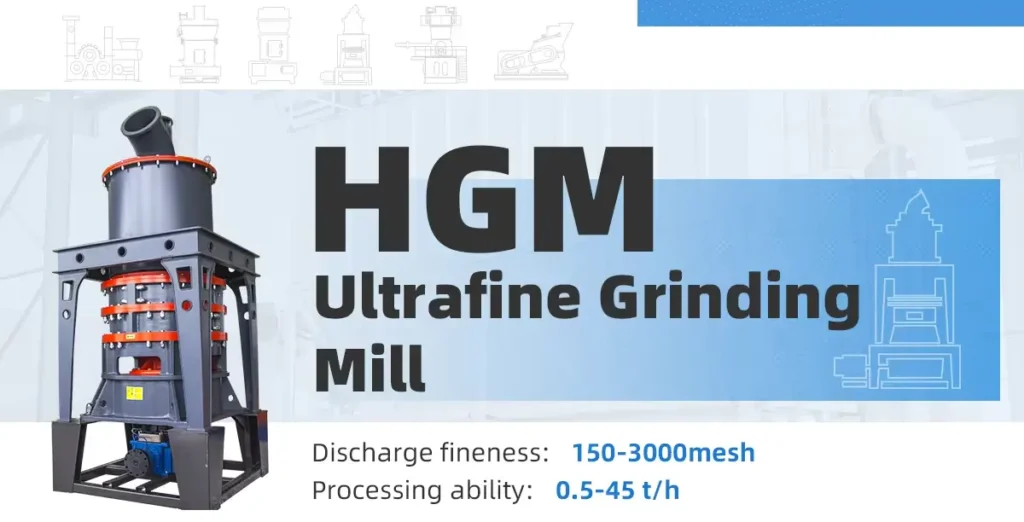

HGM Architecture and Metallurgical Foundation

The HGM ultrafine grinding mill operates on the principle of a ring-roller pressure mill. The material is subjected to three primary comminution forces: crushing, shearing, and grinding, as the rollers apply significant contact pressure against the stationary grinding ring.

Key Design Features for Stability:

1. 1. Comminution Chamber: Designed to maximize particle residence time within the effective grinding zone.
2. 2. Metallurgy: The longevity and stability of the grinding system are guaranteed by the use of GCr15SiMn alloy for the grinding rings and rollers, offering superior wear resistance and a higher utilization rate of material compared to standard materials like 60Si2Mn. This superior metallurgy is critical for reducing the Total Cost of Ownership (TCO) and increasing the Mean Time Between Failure (MTBF).
3. 3. Closed-Loop System: An integrated dynamic air classifier separates micronized product from coarser particles, which are pneumatically cycled back for immediate regrinding, thereby ensuring 100% material utilization and product homogeneity.

Advanced Process Control: VFD Kinematics for RCB

The core technological breakthrough for handling RCB is the integration of the Variable Frequency Drive (VFD) Inverter Control system. This digital control system governs the rotational frequency (f and ω) of the primary mechanical drives, allowing for dynamic tuning of the internal kinematic environment to match the lightweight material’s characteristics.

1. Main Shaft Rotational Speed Control (ωmain​)

1. 1. Technical Function: The VFD allows the operator to reduce ωmain​ below the nominal setpoint. This action directly mitigates the two critical adverse forces acting on the light RCB particle:
   • 1. Reduced Centrifugal Force (Fc​): Lower ωmain​ decreases the outward acceleration imparted on the particles, enhancing the probability of particles settling into the grinding zone.
     2. Reduced Aerodynamic Lift: The reduced speed generates a gentler internal air flow, minimizing the tendency for the low-density powder to be swept away.

1. 2. Outcome: The controlled deceleration ensures the material is “easier to fall down,” optimizing the particle-to-roller contact pressure and maximizing grinding effectiveness per rotation.

2. Classifier and Blower Control (ωsep​)

1. Technical Function: VFDs are applied to both the high-speed classifier wheel and the system blower. This is crucial for controlling the d50​ cut-point (median particle size) of the final product.
2. Outcome: Precision frequency tuning allows the air separation velocity (Vair​) to be stabilized with sub-Hertz accuracy. This is essential for ensuring that the final powder meets the stringent 10-15 μm fineness requirements, guaranteeing the necessary specific surface area for the targeted semi-reinforcement applications.

Operational and Kinematic Outcomes

The intelligent control of the HGM mill yields significant operational stability that is highly valued in continuous processing plants:

1. Minimized Dynamic Loading: Reducing ωmain​ and stabilizing material feed significantly lowers the spectral vibration (“hybrushion”) of the mill. This decreased dynamic mechanical loading directly extends the fatigue life of bearings, shafts, and structural components.
2. Energy Optimization: The VFD system allows the motor to operate only at the frequency required for the current throughput, enabling significant energy savings (Esavings​) compared to mills operating at fixed, non-optimized speeds.
3. Process Stability: By actively managing the internal flow dynamics, the HGM mill maintains a consistent ηthroughput​, which is vital for integration into automated, large-scale pyrolysis refining lines across global markets (including the USA, UK, India, and Vietnam).

The deployment of the HGM Ultrafine Grinding Mill represents not just a grinding solution, but a sophisticated application of kinematic process control to solve a challenging material science problem, effectively bridging the gap between waste residue and high-specification industrial feedstock.
