Mineral Pulverizer for Garnet

A mineral pulverizer for garnet is a specialized grinding machine designed to crush, grind, and pulverize garnet stone into fine powder for industrial applications. Garnet, a hard silicate mineral, is widely used in abrasives, waterjet cutting, sandblasting, and filtration media—but to be effective in these applications, it must be ground into specific particle sizes.

---

🔧 Recommended Garnet Mineral Pulverizer Machine: HGM Ultrafine Grinding Mill

✅ Key Features:

• Applicable Materials: Ideal for grinding hard, brittle, and crystalline minerals like garnet.
• Fineness: Adjustable from 150 mesh to 3000 mesh (D97=5-45μm), suitable for high-purity and fine-powder applications.
• Output Capacity: From 0.5 to 45 tons per hour, depending on model and final fineness.
• Components: Includes main mill, classifier, dust collector, blower, and control cabinet.

---

💎 Why Use HGM Mill for Garnet?

1. High Hardness Handling: Garnet has a Mohs hardness of 6.5–7.5. The HGM mill is designed with wear-resistant alloy parts to handle such hard materials efficiently.
2. Precision Particle Control: Produces uniform particle size distribution, critical for abrasives and waterjet media.
3. Low Contamination: Ideal for applications where high purity and low iron content are needed.
4. Energy Efficient: Uses multi-head classifiers and optimized grinding chambers to reduce power consumption.
5. Fully Sealed System: Dust-free and environmentally friendly grinding process.

---

📦 Garnet Powder Applications:

Application	Required Size
Waterjet Cutting	80–120 mesh
Sandblasting	20–60 mesh
Abrasive Papers/Wheels	60–240 mesh
Optical & Precision Use	500–3000 mesh (ultrafine)

---

🏭 Garnet Pulverizing Solution Overview

Garnet is a naturally occurring silicate mineral group with high hardness and specific gravity, making it highly desirable for industrial applications. However, to make garnet suitable for abrasives, blasting, and precision industries, it needs to be ground to specific micron or mesh levels. This is where high-performance mineral pulverizers come into play.

---

💡 How Garnet Pulverizing Works

🔄 Typical Processing Flow:

1. Crushing (Jaw Crusher / Hammer Crusher) – to reduce large raw garnet stones (~10-30mm) to smaller granules (~5mm).
2. Elevating – the crushed garnet is fed to the mill via bucket elevator.
3. Grinding (Ultrafine Pulverizer) – garnet is ground to required mesh/micron level.
4. Classifying – adjustable turbine classifier separates fine from coarse.
5. Dust Collecting – high-efficiency pulse dust collector ensures clean operation.
6. Finished Powder Storage – powder is collected for packing or downstream processing.

---

📦 Sample Configuration for a Garnet Pulverizing Plant (10 t/h @ 800 mesh)

Equipment	Model	Quantity
Jaw Crusher	PE250×400	1
Bucket Elevator	TD250	1
HGM Ultrafine Grinding Mill	HGM125	1
Pulse Dust Collector	PPC-64	1
Screw Conveyor	LS219	2
Control Cabinet + Air Compressor	—	1

---

🛠️ Machine Options for Garnet Pulverizing

🔹 1. HGM Ultrafine Grinding Mill (Mainly for ultrafine garnet powder)

Specification	Details
Fineness Range	150-3000 mesh (D97 = 5–45μm)
Capacity	0.5–15 t/h
Motor Power	90–315 kW

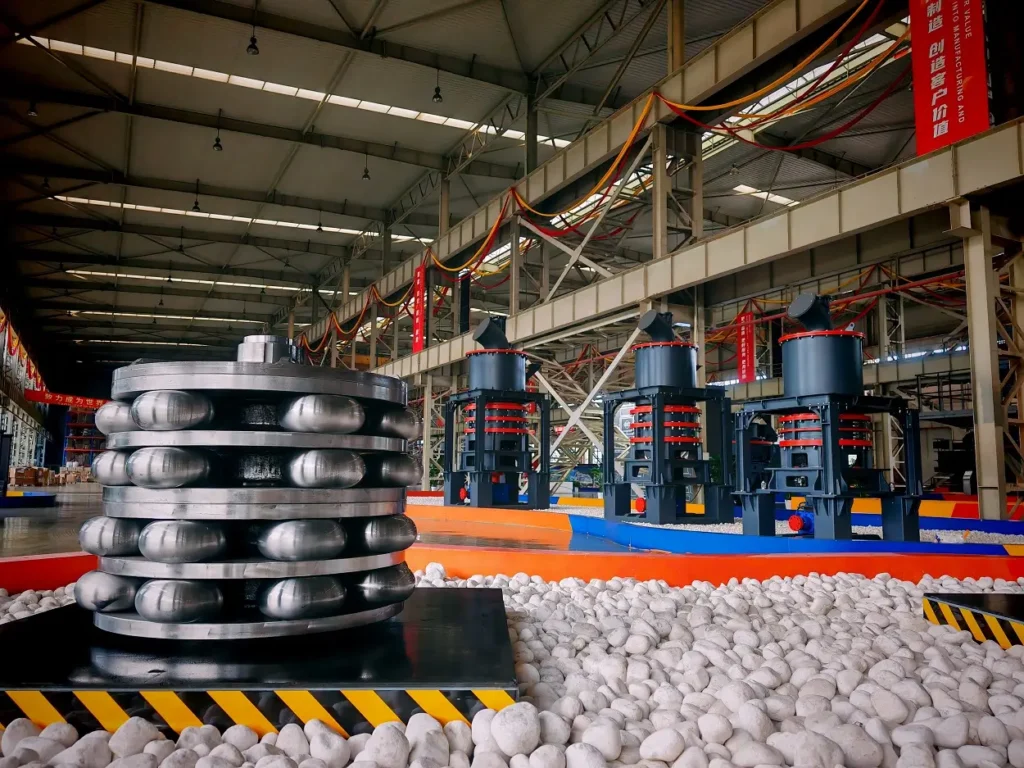

Grinding Rollers	21–44 pcs
Material Hardness	Mohs ≤ 7.5 (Garnet: 6.5–7.5)
Advantage	Stable, high-precision, suitable for fine powder

🔹 2. CLUM Vertical Roller Mill (For large-scale ultrafine processing)

Specification	Details
Fineness	600–3000 mesh
Capacity	3–20 t/h
Integrated Functions	Grinding, drying, classifying
Advantage	Energy-saving, high throughput, continuous feed

🔹 3. CLRM Raymond Roller Mill (For coarser garnet powder)

Specification	Details
Fineness	80–325 mesh
Capacity	1–10 t/h
Suitable For	Sandblasting, Water Filtration
Advantage	Economical, simple operation

---

📞 Contact Us for Garnet Pulverizer Solutions

If you’re processing garnet for commercial use, CLIRIK offers turnkey solutions with installation, training, and technical support.

📧 Email: [email protected]
🌐 Website: www.sbmmill.net
📱 WhatsApp: +86 18917951321

Let me know your desired capacity and fineness, and I can recommend a specific model and production line configuration.
