The company's main products are HGM series micro pulverizer, superfine micro pulverizer, micro pulverizer, superfine pulverizer, pulverizer and matching hammer crusher, etc.

Petroleum Coke Ultrafine Pulverizer

Discharge fineness: 325-2500 mesh

Feed size: <20mm

Output: 0.5-45 t/h

Product features: Stable operation, simple operation, long service life, environmental protection, and maintenance without stopping the machine.

Product Introduction

A petroleum coke ultrafine pulverizer is a machine used to crush and grind petroleum coke into very fine particles. Petroleum coke, also known as petcoke, is a carbonaceous solid derived from the refining process of crude oil. It contains high levels of carbon and is commonly used as a fuel source in industrial processes.

A petroleum coke ultrafine pulverizer is designed to reduce the petroleum coke particles to extremely small sizes, typically in the micron or sub-micron range. This process involves grinding the coke using specialized grinding equipment that applies mechanical force to break down the particles.

The petroleum coke ultrafine pulverizer typically consists of a grinding chamber, grinding rollers, a classifier, and a fan system. The petroleum coke is fed into the grinding chamber where it is subjected to high-speed rotating rollers. The grinding action crushes the coke into smaller particles, increasing the surface area and facilitating the release of carbon during combustion.

The classifier in the petroleum coke pulverizer separates the fine particles from the coarser ones, ensuring that only the desired ultrafine particles are collected. The fan system helps to maintain the airflow and transport the pulverized coke particles to a collection system, such as a cyclone separator or a bag filter, where they are collected for further processing or storage.

Petroleum coke ultrafine pulverizers are commonly used in industries such as power generation, cement production, and steelmaking, where the fine particle size and high carbon content of petcoke are desired for efficient combustion or other applications. These pulverizers are typically part of a larger system that includes feeding and conveying equipment, dust collection systems, and control systems to optimize the pulverization process.

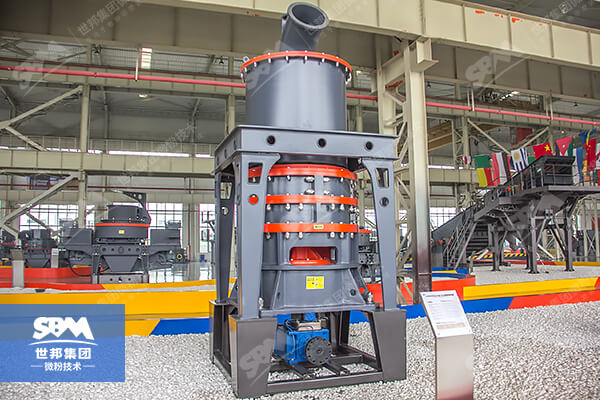

Petroleum coke ultrafine pulverizer
Petroleum coke ultrafine pulverizer

Product Advantage

SBM petroleum coke ultrafine pulverizer is a kind of equipment for converting petroleum coke into ultrafine powder. It has the following advantages:

1. High efficiency: Petroleum coke ultrafine pulverizer adopts advanced grinding technology and equipment, which can quickly and efficiently grind petroleum coke into ultrafine powder. It has high production capacity and processing capacity, which can meet the needs of mass production.

2. High quality: This Petroleum coke ultrafine pulverizer can grind petroleum coke into ultra-fine powder with controllable fineness, which has high powder uniformity and consistency. This high quality ultrafine powder can be used in various applications such as inks, coatings, rubber, plastics, etc.

3. Energy saving and environmental protection: Petroleum coke ultrafine pulverizer adopts advanced energy saving technology in the grinding process, which reduces energy consumption and carbon emissions. In addition, the equipment also has a dust control system, which effectively reduces dust pollution and meets environmental protection requirements.

4. Flexibility: The petroleum coke ultrafine pulverizer equipment can be adjusted and optimized as needed to suit different production requirements and product specifications. It has adjustable grinding parameters to control the fineness and distribution of the powder to meet the specific needs of customers.

5. Economic benefits: By grinding petroleum coke into petroleum coke ultra-fine powder, its added value and utilization rate can be increased, thus bringing higher economic benefits. Ultrafine powders are widely used in many industries, so this equipment can help enterprises achieve better economic returns.

Product Parameter

SBM HGM series petroleum coke ultrafine pulverizer has the following models for you to choose from, and you can choose according to your needs. If you are not sure, you can also consult our sales staff.

Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Adjustable range of finished product (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main motor power (kw) 75 75 55*2 132/75*2 132/75*2 185 315

Product Processing

Petroleum coke ultrafine pulverizer is a kind of equipment specially used for processing petroleum coke. The following is the general production process:

1. Raw material preparation: select high-quality petroleum coke as raw material. Petroleum coke is usually a by-product of the oil refining process and is a solid material obtained by calcination.

2. Crushing: The raw material lump petroleum coke is roughly broken through a crusher to break it into smaller particles.

3. Grinding: The coarsely crushed petroleum coke is sent to the HGM series petroleum coke superfine grinder for grinding. The ultra-fine pulverizer uses high-speed rotating blades and fixed grinding discs to further grind raw materials into fine particles through the effects of shearing, friction, and impact.

4. Classification: The pulverized petroleum coke particles will be classified by air flow. The classifier will separate according to the size and weight of the particles, and collect the ultrafine pulverized materials that meet the requirements, and the particles that do not meet the requirements will be returned to the ultrafine pulverizer for regrinding.

5. Collection and packaging: The superfine pulverized petroleum coke that meets the requirements is collected by the collection device, and packed and stored by conveyor belt or other methods.

Manufacturer introduction

Among many manufacturers of petroleum coke ultrafine pulverizers, why choose Shibang Industry?

1. Good word of mouth and word of mouth: SBM has always paid attention to word of mouth. We are honesty-based and customer-centric. We are a manufacturer with a good reputation and reputation.

2. Technical strength and research and development capabilities: Shibang Industry has advanced technical strength and continuous research and development capabilities to ensure that the equipment it produces meets the latest industry standards and technical requirements.

3. Product quality and performance: SBM’s product quality and performance are very good. We have ISO certification and other quality management system certification and a number of product patent certificates. You can also intuitively understand our products by visiting our sample hall and customer site cases.

4. After-sales service and technical support: SBM provides you with comprehensive after-sales service and technical support. This includes equipment installation and commissioning, operator training, scheduled maintenance and troubleshooting.

Considering the above factors, you can rest assured to buy Shibang Petroleum Coke Superfine Grinder.

Share this article

Product Specifications

Model: HGM80, HGM90, HGM100, HGM125, HGM168L.

Capacity: 0.5-45t/h

Max feeding size: 25 mm

Processing ability: 0.5-45t/h

Finished size: 325~2500 meshes(5-45 micron)
