The company's main products are HGM series micro pulverizer, superfine micro pulverizer, micro pulverizer, superfine pulverizer, pulverizer and matching hammer crusher, etc.
Discharge fineness: 150-3000 meshes
Feed size.: <20 mm
Output: 0.5-45 T/H
Product features: small footprint, stable operation, long service life, strong complete set, environmental protection and energy saving, safe and reliable, etc.
Table of contents
Calcium carbonate ultrafine grinding mill is a kind of high efficiency milling equipment, mainly used to process non-metallic ores. The equipment is independently developed and produced by SBM, sold directly by the factory, without middlemen, and is extremely cost-effective. It is a piece of ideal grinding equipment for processing 150-3000 mesh calcium carbonate powder.
Adjustable fineness: 150-3000 mesh
Output: 0.5-45t/h
Processing material: non-metallic ore with Mohs hardness less than 6. Such as limestone, marble, dolomite, kaolin, pumice, calcite, and so on. It can also process coconut shells, cocoa shells, shells, bamboo, and other materials.
Features: small footprint, stable operation, long service life, strong complete set, environmental protection, and energy-saving, safe and reliable, etc.

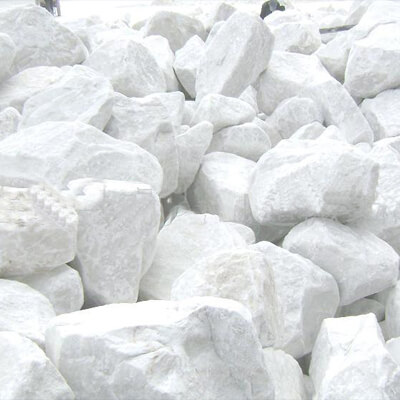

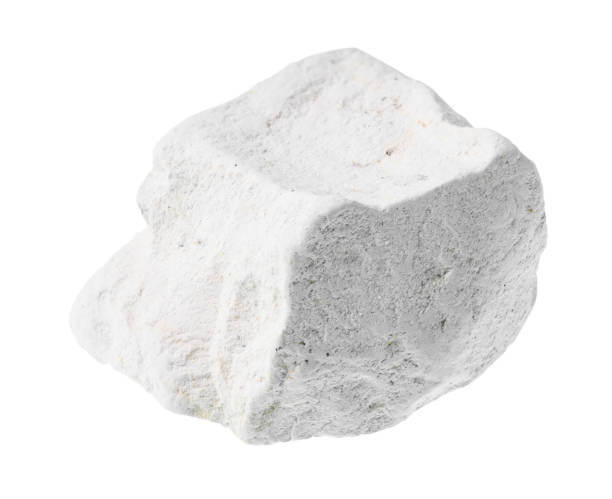

Calcium carbonate is an inorganic compound with the chemical formula CaCO₃. Calcium carbonate is alkaline, basically insoluble in water but soluble in hydrochloric acid. It is one of the common substances on the earth and exists in rocks such as aragonite, calcite, chalk, limestone, marble, and travertine. It is also the main component of some animal bones or shells.

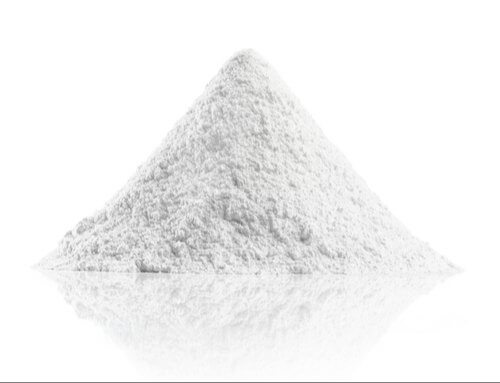

Calcium carbonate is an important building material and is widely used in industry. Through ultrafine grinding machine processing, calcium carbonate ultrafine powder can be obtained, which is widely used in rubber, plastic, coating, paint, paper, and other manufacturing industries, as well as the food industry and construction industry.

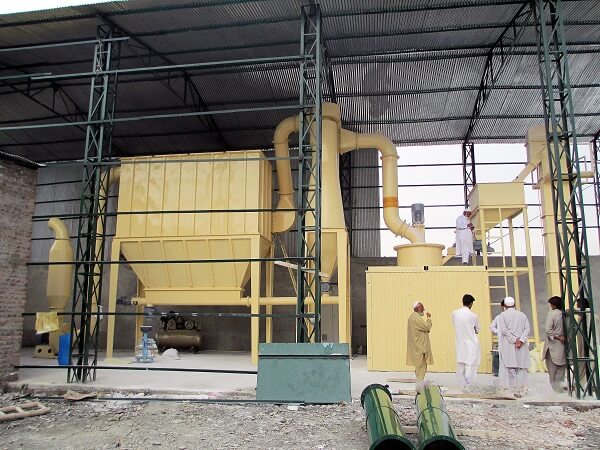

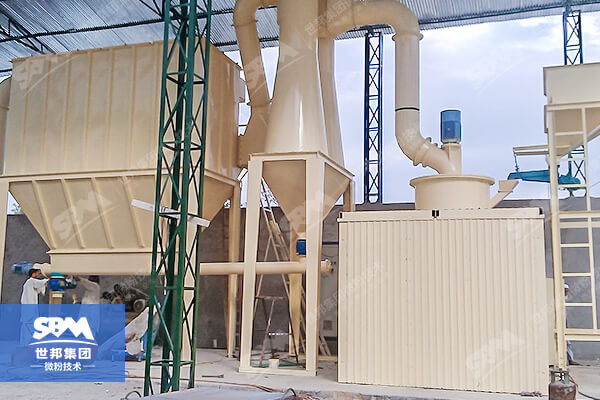

The complete set of equipment systems of calcium carbonate ultrafine grinding mill is mainly composed of main machine, feeder, classifier, blower, pipeline device, storage hopper, electric control system, collection system, and so on.
The milling efficiency of the production line is high, and the full pulse dust collection system is adopted, which can achieve a dust collection efficiency of up to 99%. It is a new type of green and environmentally friendly fine grinding processing equipment.
The production line adopts the design principles of industrial parkization, centralized control intelligence, automation, and modularization. It relies on an intelligent control system to control the operation status of the equipment, and the operation and maintenance are more convenient.
Calcium carbonate superfine powder mill has high grinding efficiency and fast powder output speed. Equipped with a high-precision forced turbine grading system, so the finished particle shape is uniform and fine.
The HGM ultrafine grinding mill can easily process the material into finished powder between 150-3000 mesh and can be freely adjusted between 150-3000 mesh according to requirements.
The unique pulse dust collection system of the equipment is a new type of green environmental protection equipment for dust treatment. The dust collection efficiency is as high as 99.9%, which effectively guarantees the dust-free operation of the workshop.
The grinding wheel and grinding ring of the ultrafine grinding mill are made of special wear-resistant steel, which greatly improves the durability of the equipment and the service life of the machine.
| Parameters of HGM series ultrafine grinding mill | |||||||
|---|---|---|---|---|---|---|---|
| Model | HGM80 | HGM80A | HGM90L | HGM100L-Ⅱ | HGM100P | HGM125L | HGM1680L |
| Ring Diameter(mm) | 800 | 800 | 900 | 1000 | 1000 | 1250 | 1680 |
| Ring Number (PCS) | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Input Size (mm) | ≤10 | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 | ≤20 |
| Adjustable range of finished product (mesh) | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 |
| Capacity (t/h) | 0.5-5.5 | 0.5-5.5 | 0.8-6.5 | 1.2-10 | 1.2-11 | 2.5-20 | 5-45 |
| Outlet Size L*W*H (mm) | 8605*4139*6050 | 10454*3393*6626 | 11735*3952*7525 | 14507*3633*7562 | 14362*4200*7562 | 19261*4406*8591 | 25067*5414*9007 |
| Main motor power (kw) | 75 | 75 | 55*2 | 132/75*2 | 132/75*2 | 185 | 315 |

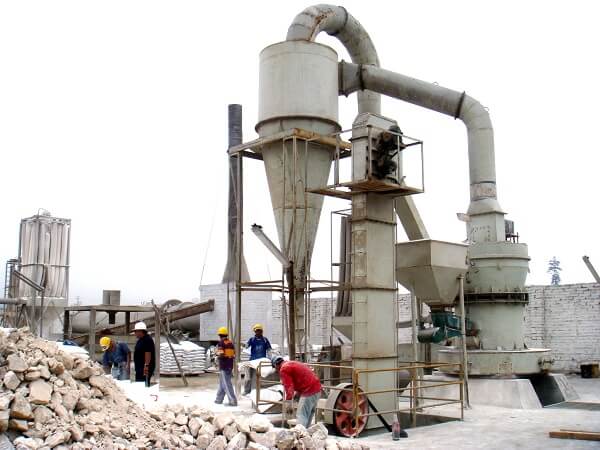

Material: Calcium carbonate
Fineness: 300mesh
Capacity: 20 t/h
Purpose: Calcium carbonate powder is widely used in many fields such as papermaking, rubber, cosmetics, building materials, paint, putty, coating…
Our company’s ultrafine grinding mill equipment keeps improving, and strictly controls the product quality.
The company’s superfine powder mill equipment products have passed ISO9001, EU CE certification, French BV certification, Geneva SGS certification, etc., and the products comply with international standards.
The production line can flexibly adjust the output ratio of each finished material according to the market situation. The finished materials are of high quality, which can not only meet customers’ high standards for calcium carbonate, but also bring considerable economic benefits to customers.
The production line adopts the design principles of industrial parkization, centralized control intelligence, automation, and modularization. It relies on the intelligent control system to control the operation status of the equipment, and the operation and maintenance are more convenient.
Good after-sales service, able to provide fast installation and maintenance services for global users.
The ultra-fine pulverizer has comprehensive mechanical crushing properties such as roller compaction, milling, and impact. It has important application value in the processing of calcium carbonate, calcite, limestone, bentonite, graphite and other non-metallic minerals. The maintenance and repair work of calcium carbonate ultrafine grinding mill is very necessary to improve the service life of the equipment.
1. Clean the mill. Clean the inside and outside of the parts of the mill, including the machine body, grinding ring, grinding roller, motor, belt, gear connection, etc., and all the places that can be cleaned should be cleaned. The purpose of this is to find out whether there are any loopholes and do a full “body” inspection.
2. During the cleaning process of the mill, pay attention to find out whether the bolts of each connection part are complete and whether there is any looseness or loss. Loose bolts need to be tightened immediately, and missing bolts should be made up immediately.
3. Write in the table the faults that are easy to occur in the equipment of the ultra-fine pulverizer. From easy to difficult, eliminate one by one to ensure that the same failure does not occur repeatedly in production. Especially safety-related faults must be eliminated.
4. After the troubleshooting of the mill is completed, the whole machine must be maintained. Grease the lubrication points, and replace the lubricating oil and gear oil on time as required by the instructions.
5. After the maintenance is done, the mechanical equipment should be placed on a flat and solid site, and can be parked in a dedicated hangar if conditions permit.
Model: HGM
