1. Raw Material Preparation
Input Material: Iron oxide
Initial Size: ≤20 mm
Moisture Content: ≤6% (pre-drying required if higher)
2. Grinding Process

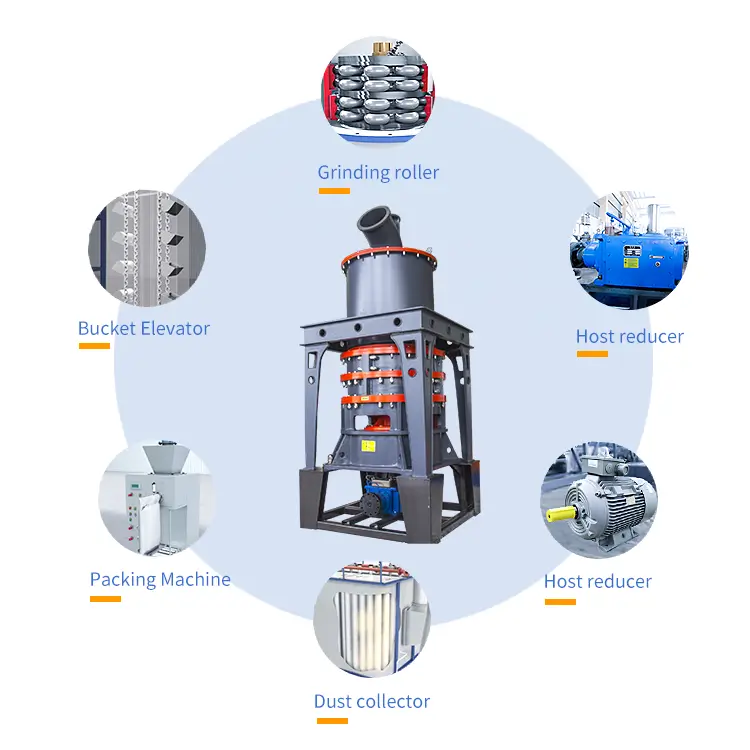

Core Equipment: HGM80 Ultrafine Grinding Mill
Output Size: 1250 mesh (D97 ≤ 10µm)
Capacity: 1.2 tons per hour
3. Powder Classification
System: Integrated classifier ensures precise separation.
Output: Uniform, fine iron oxide powder.
4. Dust Collection
Equipment: Pulse dust collector ensures clean and environmentally friendly operations.
5. Product Packaging
Big bag packaging for efficient handling of finished powder.
Main Motor Power: 55 kW
Classifier Motor Power: 18.5 kW
Fan Power: 45 kW
Feeding Size: ≤10 mm
Final Product Size: Adjustable between 325-2500 mesh.
1. High Precision: Achieves ultrafine powder with consistent particle size, meeting industry requirements.
2. Energy Efficiency: Consumes less energy while maintaining high output.
3. Environmental Compliance: Advanced dust collection system minimizes emissions.
4. Compact Design: Space-saving and easy to integrate into existing production lines.
5. Durability: Resistant to wear from abrasive iron oxide particles.
