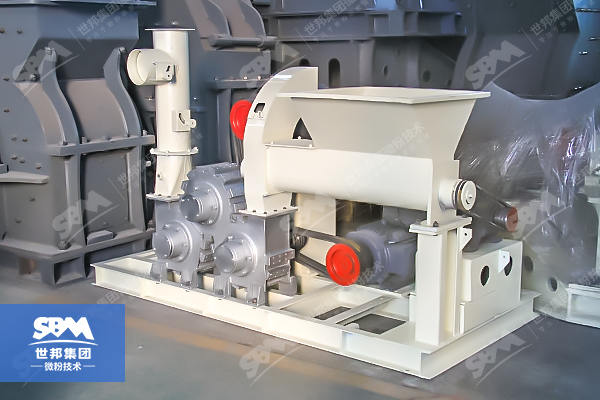

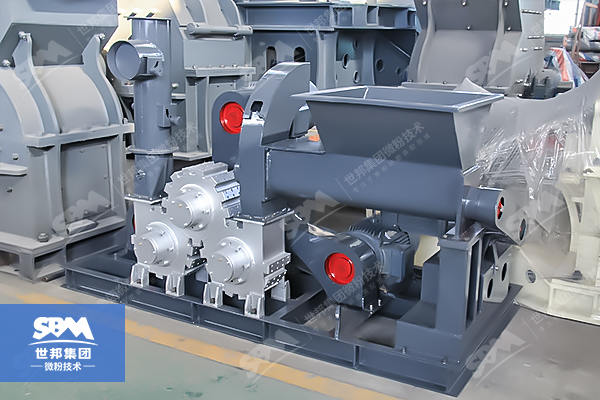

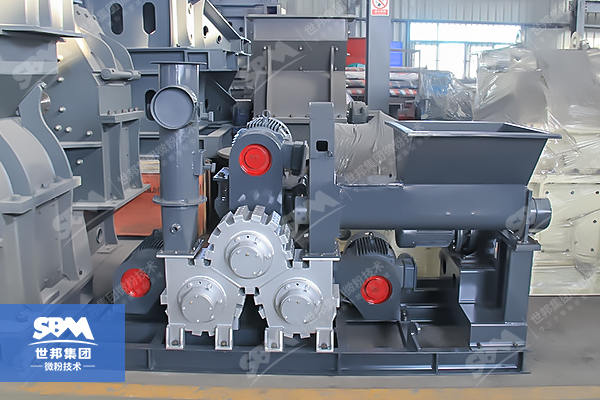

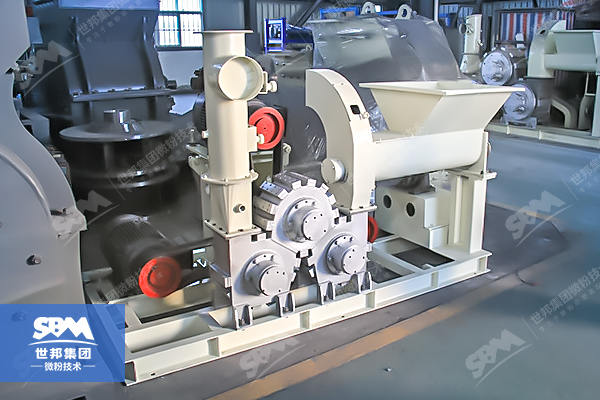

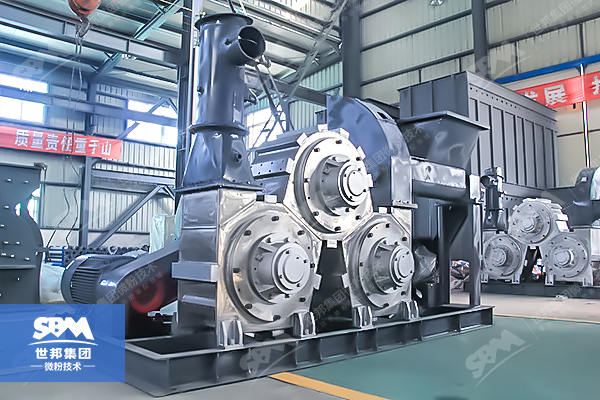

Powder Surface Coating Machine

Capacity: 40-7000 kg/h

Max feeding size: Optional

Processing ability: 40-7000 kg/h

Range of application: Heavy/light calcium carbonate, kaolin, talcum, wollastonite, mica, white carbon black, zinc oxide, alumina, silicon powder, graphite, magnesium-hydroxide bariumcarb, illite claystone and pyrophyllite, hexagonite, etc.

Product features: Continuous operation, large capacity, both modification and dispersion functions, no pollution, simple operation

Introduction of Powder Surface Coating Machine:

A mineral powder surface modifying machine is also called a Powder surface coating machine. It is widely used in the fields of non-metal stuffing like pigment, plastic, rubber, adhesive, macromolecule materials, high polymer composite, functional materials, and dope industries. It is an outcome of the development of new and high technology nowadays.

After dealing with Powder Coating machine, it can not only improve the compatibility of both non-organic mineral stuff and organic high polymer, enhance the binding force of interfaces, rise the mechanical strength and comprehensive ability, but also increase the stuffing ability of powder, save product cost and add a special physical and chemical property to the product to some extent.

For resolving the above-mentioned problem in production, this high-efficiency equipment CLG powder surface modifying machine is recommended by our company as a result of hard research work.

Application of Powder Surface Coating Machine:

With special chamber design and the function of modification and depolymerization, the machine is applicable to modifying various materials.

It can reach excellent surface modifications for such materials as heavy/light calcium carbonate, kaolin, talcum, wollastonite, mica, white carbon black, zinc oxide, alumina, silicon powder, graphite, magnesium-hydroxide bariumcarb, illite claystone, and pyrophylite, hexagonite and etc.

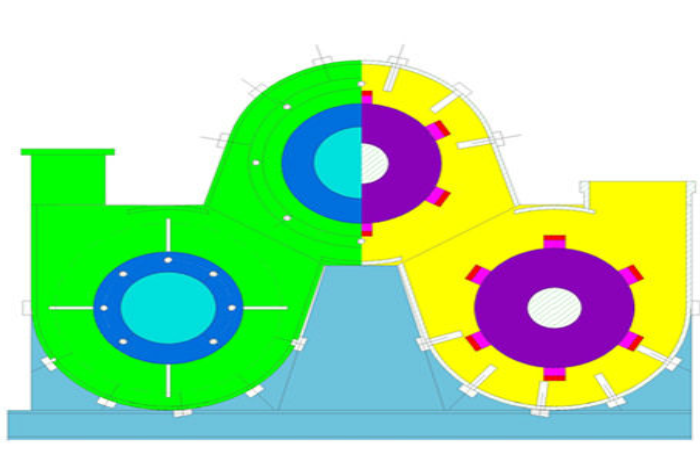

Working Principle:

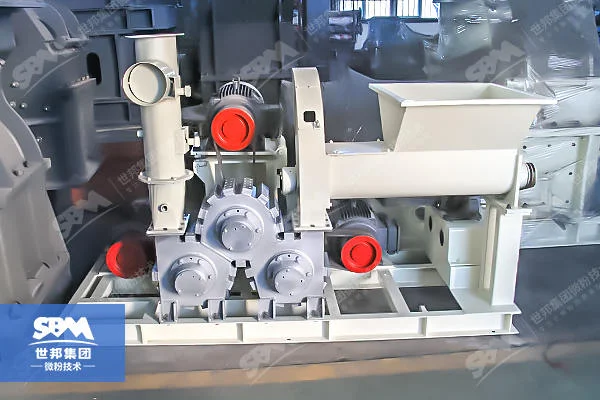

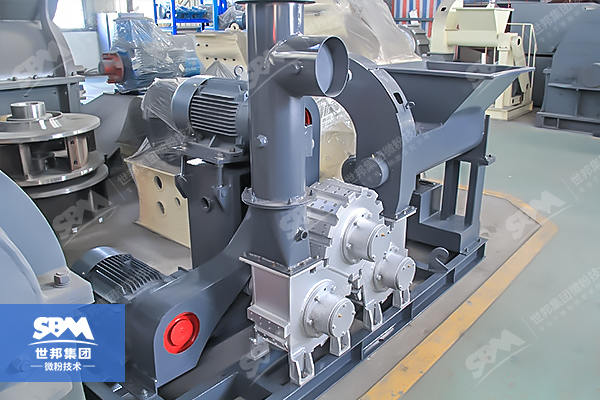

Powder Surface Coating Machine

The powder surface treatment is completed mainly by means of three modifying rollers.

The dry powder and dosed agent are put into modifying rollers simultaneously. With high-speed rotation, the materials and agents are running in the form of a fluidizing vortex.

The modification is completed with the heat generated by high-speed shearing, colliding and friction among the rotor, stator, and powder.

Benefits of Powder Surface Coating Machine:

1. Continuous operation, large capacity, suitable for industrialization production on various scales.

2. High use and less consumption of modifying agents. High covering and active index of power, energy saving.

3. Both modifying and dispersion function, suitable for any fine materials, special active effect for material with small proportion and big cubage weight like white carbon, mica powder, and talcum powder.

4. Powder and agent mixing and running in high speed and vortex, high modifying efficiency, with little chance of granulate shape.

5. Running at vacuum, airtight, no dust leakage, no pollution, good operation condition, low labor intensity.

6. Operating in heat and cold conditions, no additional heating or cooling system required easy operation.

7. Independent fluid and non-fluid agent adding system for continuous, stable, and even operation.

Specifications of Powder Surface Coating Machine::

ModelMain PowerBlower PowerSpeed of ShaftCapacityWeightOverall Dimension
CLG-200D11kw2.2kw5700 r.p.m40-150kg/h1t3200*600*2200mm
CLG-3/3003-18.5kw5.5kw4500 r.p.m500-1800kg/h3t5800*1800*5600mm
CLG-3/6003-37kw15-22kw2700 r.p.m 2000-4000kg/h10t11200*3100*6200mm

Our Services

Pre-sale ↗

Help customers to select equipment

Free arrangement of engineers to the site for actual survey and plan design

On sale ↗

Strict implementation of quality standards, quality assurance of ex-factory products

Free logistics and transportation information, more choices for logistics and transportation

Strictly implement the standard process of preparation and delivery, timely and accurate stock preparation, and rapid delivery

After sale ↗

Free arrangements for engineers to guide the basic production of equipment

Provide free technical guidance for equipment installation and commissioning

The free on-site one-to-one operation, repair, maintenance, and other training

Professional after-sales service team, 24 hours response to customer needs

Our Factory

SBM Hot Sale Crushers & Grinding Mills

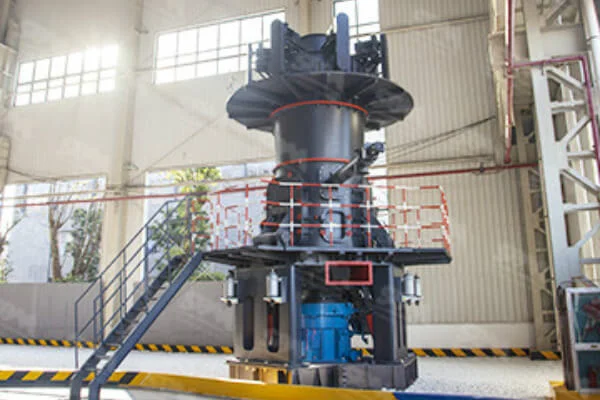

  • CLUM Ultrafine Vertical Grinding Mill
