HGM125 ultrafine grinding mill delivery site

2022-01-14 admin

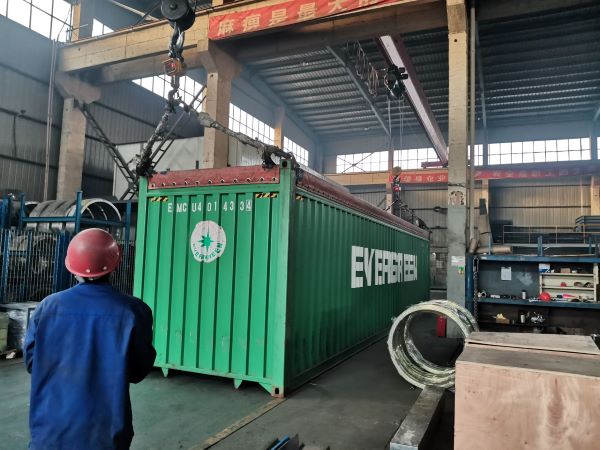

Today, 2 sets of HGM125 ultrafine grinding mills were loaded in the factory and sent from Shanghai port to South Korea. HGM125 ultrafine grinding mill has a small footprint, stable operation, simple operation, and the fineness of the finished product can be flexibly adjusted between 150-3000 mesh.

This Korean customer, mainly engaged in ultrafine powder processing of non-metallic ores, contacted us through our website. In the 3 months of communication and communication, customers have a deep understanding of our products and are very satisfied with our services. Finally, reached a cooperation and purchased 2 sets of HGM125 ultrafine grinding mills.

HGM125 Ultrafine Grinding Mill

ultrafine grinding mill

Input size: ≤20 mm

Capacity: 2.5-20 t/h

Machinable materials: non-metallic ores with Mohs hardness less than 7, calcium carbonate, dolomite, calcite, fly ash, barite, gypsum, pumice, etc.

Advantages: Small footprint, can be placed in the open air, low investment

Intelligent control system, easy to operate

Grinding rings and grinding rollers are made of special alloy steel, which is more wear-resistant and has a long service life

The whole process is under negative pressure, equipped with a pulse dust collector, which is clean and environmentally friendly

HGM series ultrafine grinding mill has a total of 7 models

Parameters of HGM series ultrafine mill
Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Adjustable range of finished product (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main motor power (kw) 75 75 55*2 132/75*2 132/75*2 185 315
