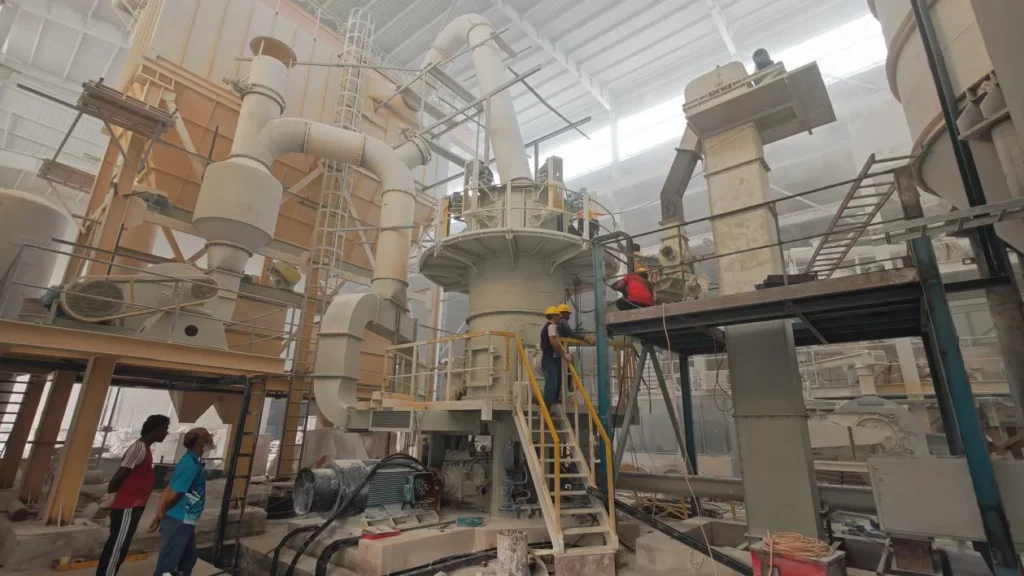

The vertical grinding mill is the core host of modern cement production lines.

An entrusted cement plant vertical grinding mill directly decides the cement factory’s output and power consumption.

The traditional ball mill has obvious defects of high energy consumption and a large area of equipment.

Thus, we independently developed a cement vertical grinding mill for raw materials and the subsequent processing part.

Brief Advantages of Cement Vertical Grinding Mill

Our vertical roller grinding mill for cement material plant integrates crushing, drying, grinding and classification in a complete production line.

We are fully capable of producing and assembling a 0-1 process for our clients.

In the cement grinding field, it is called the ERP plan, presenting our core advantages of specialities.

What’s more, our integrated cement vertical grinding mill enormously simplifies traditional lucrative cement plant layout designs.

Material For Cement Mill: Raw Meal VS Clinker

In general, the cement plant vertical roller mill has two main applications.

Raw Meal For Cement Vertical Mill:

Raw meal includes: limestone, clay, iron ore, and mixed raw materials.

Tips: It requires the moisture of raw ore to be below 3% to ensure the target output.

Clinker Material For Vertical Mill:

Especially represents the cement clinker, certain kinds of gypsum as well.

Compared to raw meal, the hardness of clinker is higher, demanding wear-resistant grinding components.

Different Materials for Cement Vertical Mill

Material	Components	Key Information
Raw Meal for Cement Vertical Mill	limestone, clay, iron ore mixed raw materials	Requires moisture of raw ore below 3% to ensure target output
Clinker Material for Vertical Mill	cement clinker, certain kinds of gypsum	Hardness is higher compared to raw meal, demanding wear-resistant grinding components

Superior of Our Vertical Mill for Cement

Our cement vertical grinding mill adopts a more advanced internal component design.

With special ingredients of weary parts design, our grinder hosts an absolutely longer lifetime of consumption.

Working Principle of Cement Vertical Roller Mill

1\ Dry raw materials are evenly sent into the grinding table of the cement vertical grinding mill.

2\ Especially-designed pressure device provides stable grinding pressure for grinding rollers.

3\ Materials are squeezed, ground and sheared between the roller and the grinding table.

4\ Airflow enters the mill from the bottom to finish classifying during grinding.

5\ Fine powder is lifted by airflow to the integrated dynamic classifier.

6\ Qualified cement raw meal or clinker powder is collected by a subsequent dust collector.

7\ Besides, coarse particles fall back onto the grinding table for repeated regrinding.

8\ The complete circulation runs in a sealed vertical mill body without dust overflow.

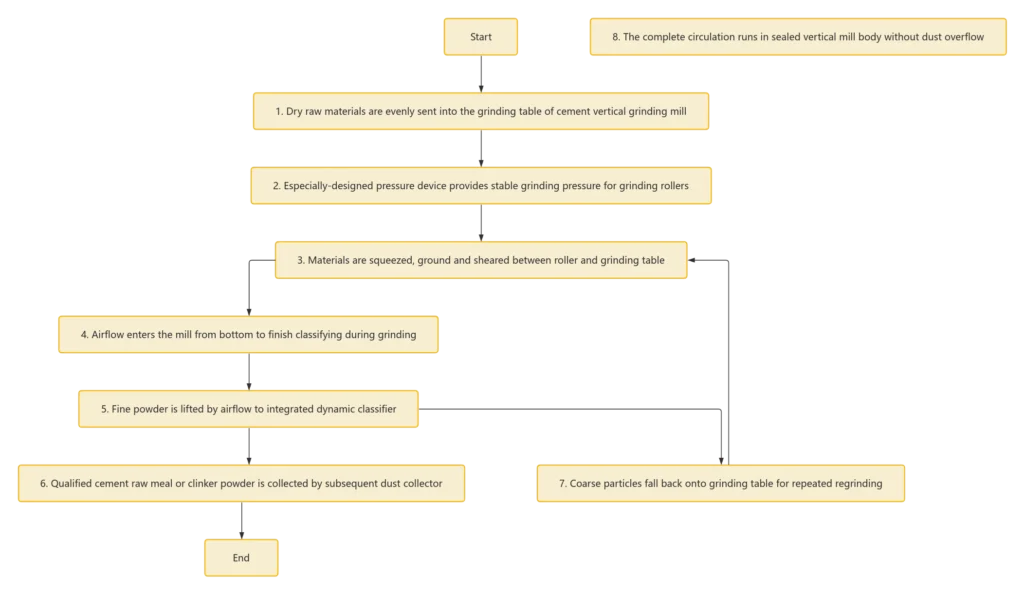

Internal working flow of cement plant vertical roller mill

Main Model Basic Technical Parameters

Model	Plate Diameter(mm)	Max Hour Output(t/h)	Main Unit Power(KW)	Feed Size(mm)
CLUM1425	1400	9-12	220-250	<10mm
CLMU1632	1600	12-16	315-355	<10mm
CLUM1736	1700	14-18	255-410	<10mm

The cement vertical grinding mill series offers three models with varying specifications to meet different production needs.

The CLUM1425: features a 1400mm plate diameter, delivering a maximum hourly output of 9-12 tons with a main unit power of 220-250 KW.

The CLMU1632: with a 1600mm plate diameter, increases production capacity to 12-16 tons per hour and requires 315-355 KW of power.

The CLUM1736: for higher output requirements, comes with a 1700mm plate diameter, achieving 14-18 tons per hour while operating on 255-410 KW.

All models accept feed sizes of less than 10mm, ensuring consistent material processing efficiency.

Core Competitive Advantages

1. 1. Ultra-low power consumption: save 35% electricity compared with traditional ball mills.
2. 2. Integrated Classifying & grinding function, no extra classifier needed.
3. 3. Wear-resistant alloy roller components: extend service life for the clinker vertical mill.
4. 4. Fully sealed negative pressure design: meets any cement plant environmental rules.
5. 5. Compact structure: cuts workshop occupation area by 40%.

Key Features of the Cement Raw Vertical Mill

Feature	Description
Ultra-low power consumption	Save 35% electricity compared with a traditional ball mill.
Integrated Classifying & grinding function	No extra classifier needed.
Wear-resistant alloy roller components	Extends service life for the clinker vertical mill.
Fully sealed negative pressure design	Meets any cement plant environmental rules.
Compact structure	Cuts workshop occupation area by 40%.

Main Application Scenarios

1\ Newly built: medium and small cement production line raw meal grinding.

2\ Transformation: old cement plant technical transformation for clinker powder making.

3\ Enhance output: mixed grinding of cement clinker, gypsum and mineral admixture.

4\ Waste uses: industrial solid waste, supplementary raw material processing for cement plant.

Cement Plant Operations Summary

Number	Operation Type	Description
1	Newly build	Medium and small cement production line raw meal grinding.
2	Transformation	Old cement plant technical transformation for clinker powder making.
3	Enhance output	Mixed grinding of cement clinker, gypsum and mineral admixture.
4	Waste uses	Industrial solid waste supplementary raw material processing for cement plant.



Simple Equipment Selection Guide

Small-scale cement factory raw meal production:

CLM1300 cement plant vertical roller mill.

Dual raw meal & clinker production demand: CLM1700 cement vertical grinding mill.

High humidity mine raw materials: add a hot air furnace supporting device.

High-hardness clinker long-term production: thickened wear liner customised.

Brief FAQ of Cement Vertical Grinding Mill

Our cement plant vertical roller mill is a cost-saving core equipment for modern cement manufacturing.

The integrated cement vertical grinding mill reduces factory investment and operation costs.

It becomes preferred upgrading equipment for global cement plant reconstruction projects.
