Sepiolite superfine powder grinding mill is a high-efficiency, energy-saving, low-consumption, and environmentally friendly industrial non-metallic ore mill. The equipment is independently developed and produced by SBM, and mainly includes HGM series ultrafine grinding mills and CLUM series vertical mills. Its fineness can be adjusted between 150-3000 mesh and can be used for the grinding of sepiolite.

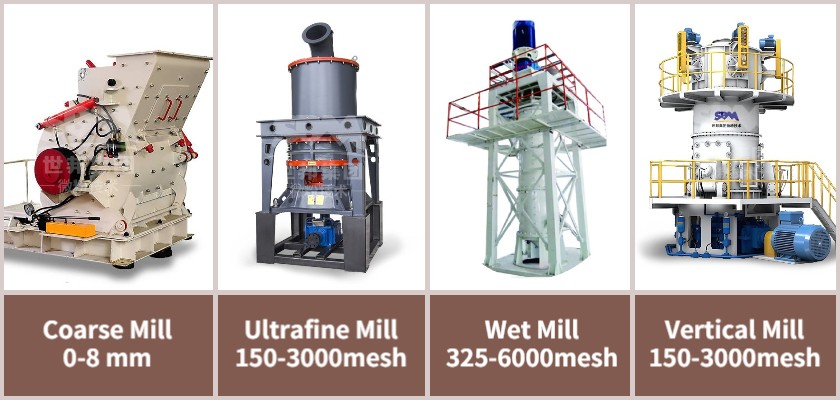

In addition, it can also be used to grind non-metallic ores with Mohs hardness less than 6. We also have a coarse powder mill (0-8mm), wet mill (325-6000 mesh), ore crusher, powder modifier, and other equipment. No matter what fineness you need to produce finished powder, we can configure the most reasonable production line for you to ensure your investment income.
Sepiolite is a fibrous hydrous magnesium silicate, usually white, light gray, light yellow, and other colors, opaque and without luster. It is shaped like a clod, or a crust, or tuberculosis. The touch is smooth and sticky, hardness: 2-3.
Sepiolite has low shrinkage, good plasticity, large specific surface, strong adsorption, soluble in hydrochloric acid, and light in weight. It has the properties of decolorization, heat insulation, insulation, corrosion resistance, radiation resistance, and thermal stability. It also has good adsorption performance, rheological performance, and catalytic performance.
It has more than 130 uses, making it one of the most widely used mineral raw materials in the world today. It is widely used in medicine, ceramics, plastics, coatings, rubber, agriculture, industry, chemical industry, construction industry, etc.
Sepiolite powder is the main raw material of sepiolite mud, which is a kind of hydrated magnesium silicate clay mineral that is purely natural, non-toxic, tasteless, non-asbestos, and non-radioactive elements. It has the largest specific surface area (up to 900m2/g) and unique content pore structure among non-metallic minerals. It is recognized as the clay mineral with the strongest adsorption capacity.
So how to make sepiolite powder?
The raw material sepiolite is fed into the jaw crusher by the vibrating feeder for primary crushing operation. After crushing, the particles that meet the particle size requirements are sent to the storage bin by the bucket elevator. Then the electromagnetic vibrating feeder evenly sends the materials into the superfine powder grinding mill for grinding operation. The pulverized sepiolite follows the airflow into the classifier and is sorted under the blow of the blower. Those that do not meet the fineness requirements are re-entered into the ore mill for grinding, and those that meet the fineness requirements are entered into the powder collection bin for unified packaging.
The equipment needed for the sepiolite processing process includes jaw crushers, bucket elevators, storage bins, vibrating feeders, ore mills, powder classifiers, powder collectors, pulse dust collectors, high-pressure fans, electrical control systems, etc. The sepiolite is crushed by a crusher, pulverized into powder by a superfine powder grinding mill, and then powdered by a powder separator. The fine powder that meets the requirements is the finished product and is discharged through the discharge valve.
Jaw crusher >>
Jaw crushers are widely used as crushing equipment in the sepiolite grinding production line. It is mainly used for the primary crushing operation of the raw material sepiolite so that the crushed sepiolite meets the particle size requirements required by the next construction. The equipment has the characteristics of a small footprint, simple operation, convenient maintenance, large processing capacity, energy-saving, and consumption reduction.
Sepiolite superfine powder grinding mill >>
The application of sepiolite powder in various fields has different fineness requirements. Common ones are 100 mesh, 200 mesh, 325 mesh, 600 mesh, 800 mesh, 1250 mesh, and above. According to different needs, the most suitable grinding mill machine can be configured to achieve the best benefits.
— 150-3000 mesh powder —

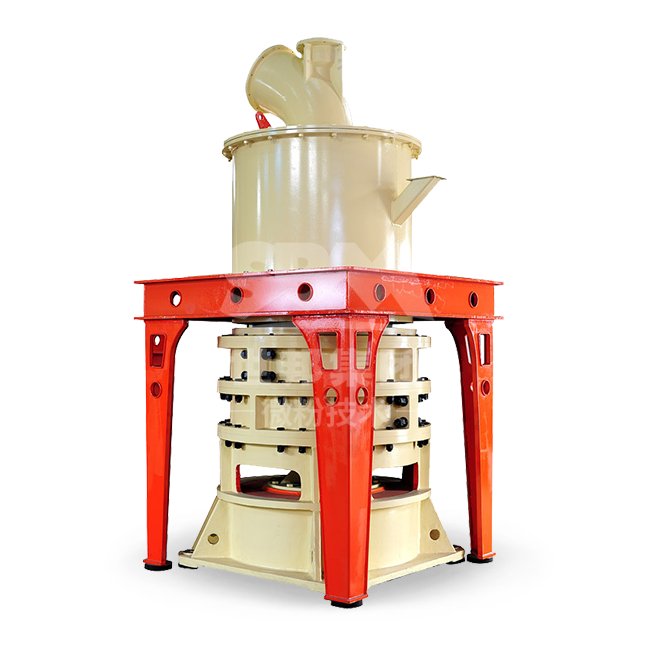

The newly designed grinding roller grinding ring grinding curve improves the grinding efficiency. The production capacity is 40% higher than that of jet mills and stirring mills, and the energy consumption is only 30% of that of jet mills.
Equipped with multi-head cage type powder concentrator. The fineness of the product can be adjusted arbitrarily between 150-3000 mesh, and the one-time screening rate can reach d97≤5μm.
The lubrication device is installed outside the main shaft, which can realize external non-stop lubrication and continuous production for 24 hours.
HGM superfine powder grinding mill is equipped with a high-efficiency pulse dust collector, so there will be no dust pollution during the operation of the entire crushing system. Equipped with silencer and anechoic room to reduce noise.
SBM specially designed a unique roller shell and liner grinding curve, which can greatly improve the working efficiency of the mill and improve the whiteness and cleanliness of the finished product.
Using a PLC control system and multi-head powder selection technology, it can precisely control the working parameters of the equipment such as grinding pressure and speed. Compared with ordinary mills, the energy consumption of this mill can be reduced by 30%-50%.
The contact point between the roller shell and the grinding disc liner adopts electronic limit technology and mechanical limit protection technology, which can avoid the destructive impact caused by machine vibration and ensure the stability of operation.
Through the reversible structure and hydraulic adjustment system, the operator can easily and quickly move the grinding roller out of the machine body, inspect and replace the roller shell and liner, and perform other maintenance operations to reduce downtime losses.
— 325-6000 mesh powder —
Ultrafine powders, reach 2 microns with a content of 90% for milling one time.
Has a large output, high efficiency, low energy consumption, environmental protection, and other features.
Vertical-shaped star wheel reducer higher transmission efficiency, run more smoothly.
Low consumption of grinding media, non-polluting. The temperature is low for finished products, good liquidity.
Compact structure, suitable height, easy operation and maintenance, stable production, automatic controlling is optional.
— 0-8 mm powder —
Coarse powder grinding mill is engaging in crushing various rocks and stones with comprehensive strength not higher than 320 MPA into coarse powder and small particles.
High capacity and low power consumption.
Uniform particle size with high crushing and crushing ratio.
Low investment, easy operation.
Electromagnetic vibration feeder >>
The electromagnetic vibrating feeder is mainly used to evenly feed the sepiolite into the receiving device. The equipment has the characteristics of small size, lightweight, convenient maintenance, low operating cost, and low wear of the feeding trough. It is a piece of very good feeding equipment.
Bucket elevator >>
Bucket elevator is a kind of vertical lifting equipment, which sends sepiolite vertically to the equipment needed in the next step. The equipment has the characteristics of reliable operation, large conveying capacity, low maintenance, and few wearing parts.
SBM integrates R&D, production, distribution, and service, and attaches great importance to communication with customers. We have established a systematic and standardized service guarantee system to ensure that each service item is handled in a timely and proper manner.
SBM adheres to the principle of providing customized design solutions for each customer. Relying on the professional knowledge of the sales manager and the full life cycle service of the product, help customers overcome difficulties in equipment procurement, operating cost accounting, operation management, and after-sales service acquisition, improve profitability, and achieve sustainable business development.
SBM provides customers with free on-site exploration services, including material testing and on-site evaluation. SBM also provides complete analysis reports and project descriptions to ensure that the solution design better meets customer requirements and has higher security.
SBM provides customers with professional integrated solutions based on the results of professional on-site investigations and displays the CAD drawings and 3D drawings of each solution. With strong R&D capabilities, SBM can provide customized equipment to meet the needs of special projects.
We assign a project manager for each project to provide professional project management services, including strict project schedule management and strict internal production management, to ensure that the project is completed on time; to provide customers with detailed construction schedules and plans to ensure production line construction completed on time;
We provide customers with a full set of installation services such as site leveling, foundation drawing inspection, construction progress, team planning, installation guidance, and commissioning to ensure the smooth operation of the production line. In addition, we provide customers with appropriate training to achieve their satisfaction.
